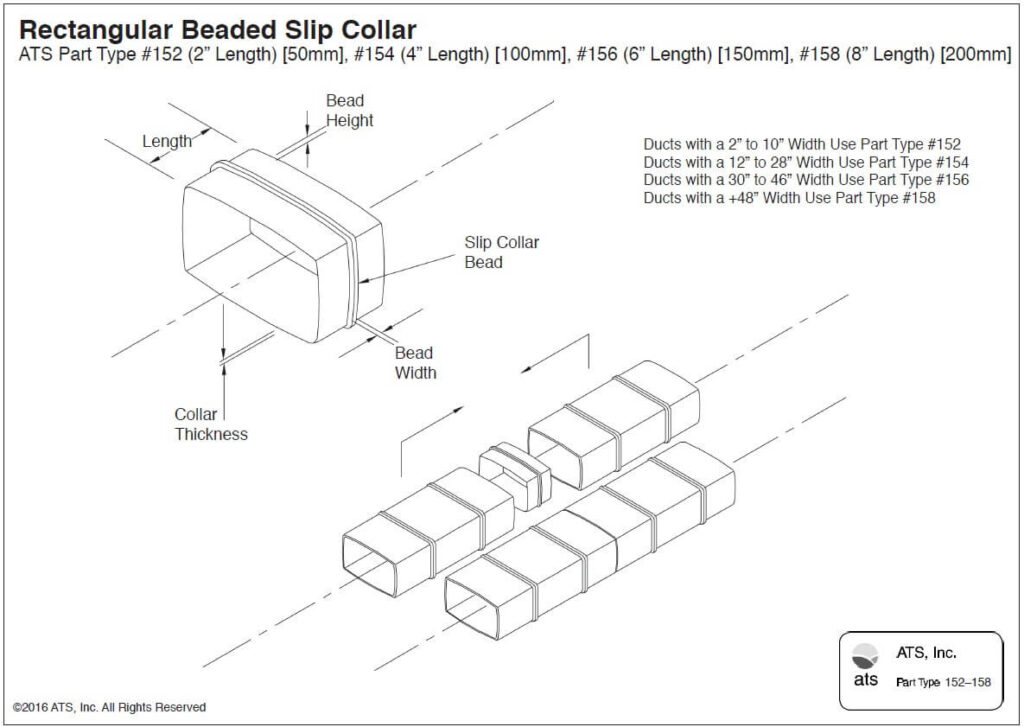

ATS Part Type #152 (2” Length) [50mm], #154 (4” Length) [100mm], #156 (6” Length) [150mm], #158 (8” Length) [200mm]

Collar								Bead
Width		Height		Thickness		Length		Thickness		Height
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm
2	50	*	*	1/8	3	2	51	1/4	6	3/16	5
4	100	*	*	1/8	3	2	51	1/4	6	3/16	5
6	150	*	*	1/8	3	2	51	1/4	6	3/16	5
8	200	*	*	1/8	3	4	102	1/4	6	3/16	5
10	250	*	*	1/8	3	4	102	1/4	6	3/16	5
12	300	*	*	1/8	3	4	102	1/4	6	3/16	5
14	350	*	*	1/8	3	4	102	1/4	6	3/16	5
16	400	*	*	1/8	3	4	102	1/4	6	3/16	5
18	450	*	*	1/8	3	4	102	1/4	6	3/16	5
20	500	*	*	1/8	3	4	102	1/4	6	3/16	5
22	550	*	*	1/8	3	4	102	1/4	6	3/16	5
24	600	*	*	1/8	3	4	102	1/4	6	3/16	5
26	650	*	*	1/8	3	4	102	1/4	6	3/16	5
28	700	*	*	1/8	3	4	102	1/4	6	3/16	5
30	750	*	*	1/8	3	6	152	1/4	6	3/16	5
32	800	*	*	1/8	3	6	152	1/4	6	3/16	5
34	850	*	*	1/8	3	6	152	1/4	6	3/16	5
36	900	*	*	1/8	3	6	152	1/4	6	3/16	5
38	950	*	*	1/8	3	6	152	1/4	6	3/16	5
40	1000	*	*	1/8	3	6	152	1/4	6	3/16	5
42	1050	*	*	1/8	3	6	152	1/4	6	3/16	5
44	1100	*	*	1/8	3	8	203	1/4	6	3/16	5
48	1200	*	*	1/8	3	8	203	1/4	6	3/16	5
50	1250	*	*	1/8	3	8	203	1/4	6	3/16	5
52	1300	*	*	1/8	3	8	203	1/4	6	3/16	5
54	1350	*	*	1/8	3	8	203	1/4	6	3/16	5
60	1500	*	*	1/8	3	8	203	1/4	6	3/16	5

*This dimension must be less than or equal to width.
